Monophase shunt reactors with a capacity of 1.66 kVAr, 3.33 kVAr, 6.66 kVAr and 10 kVAr, specially produced for ENTES' SVC solution, are connected to the drive in groups of 3, which provides an excellent solution for capacitive loads.

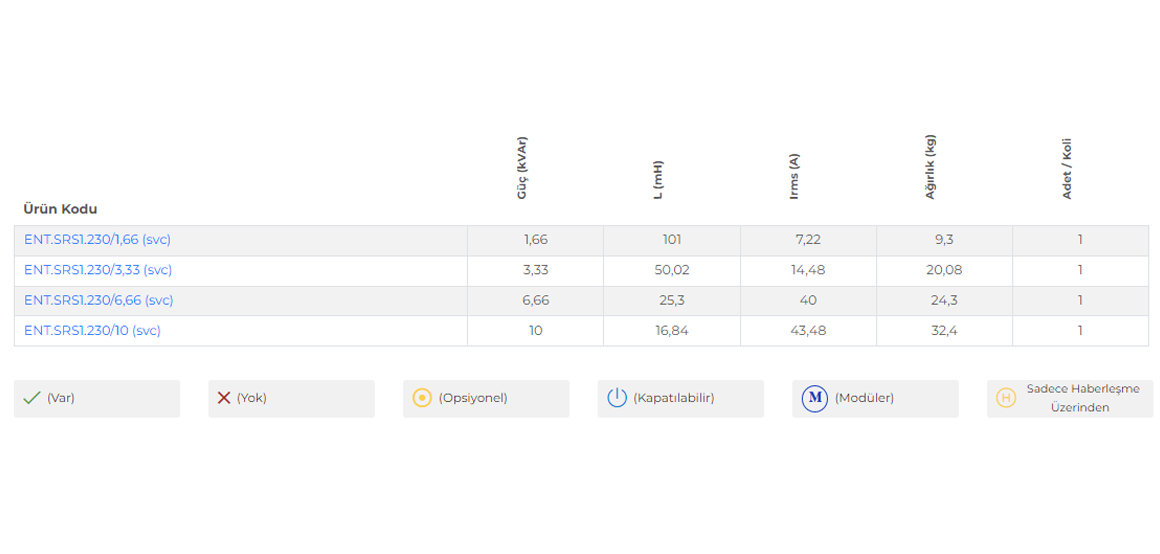

TECHNICAL SPECIFICATIONS

Power (kVAr):1.66

L(mH):101

Irms(A):7,22

Weight (kg): 9.3

Qty/Parcel: 1
