New Series Reactive Power Control Relay

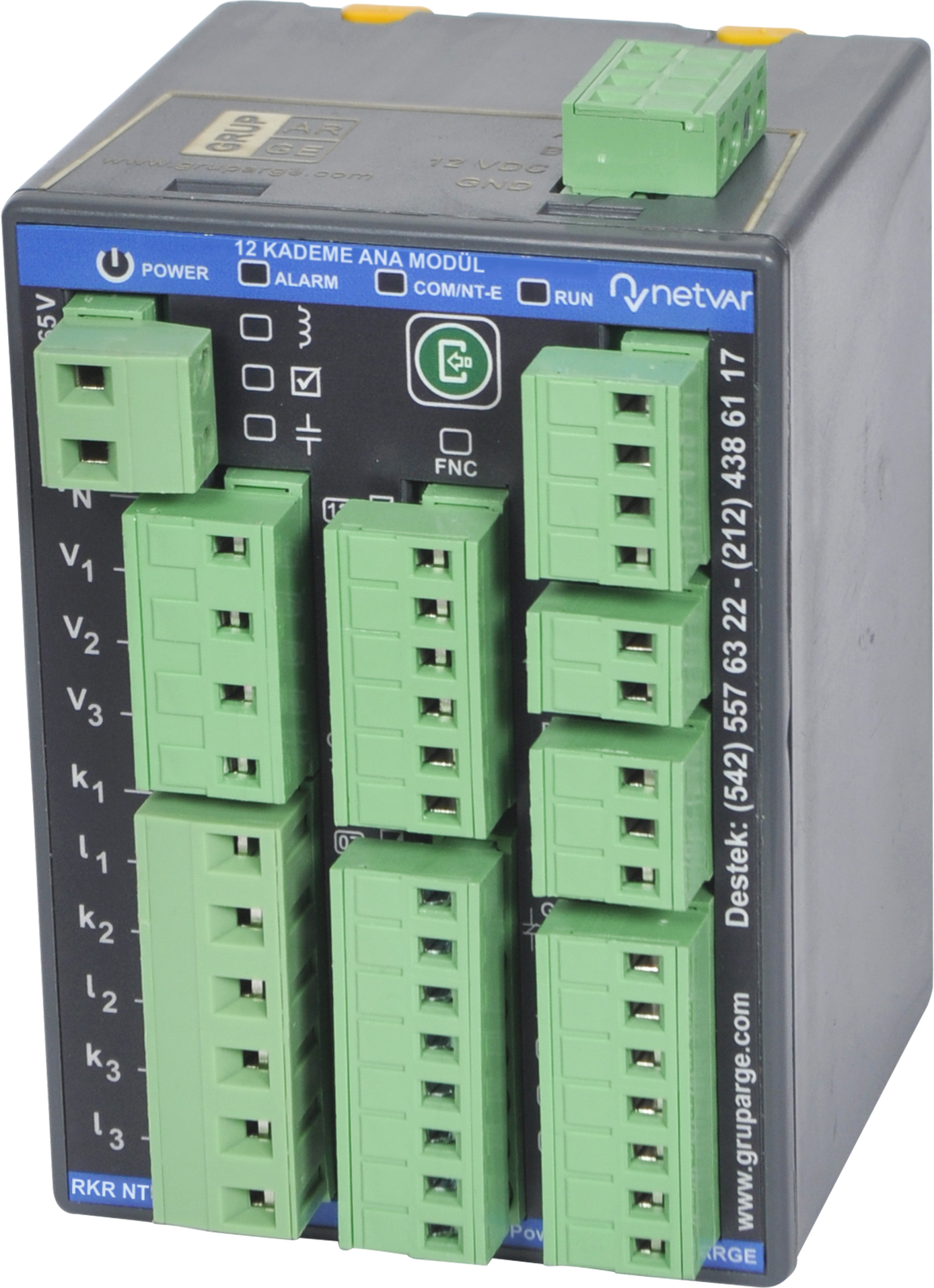

Approximately 30 measuring, control and communication cables are used in the classic compensation board, ranging from contactors to the relay located at the top of the board cover. In NetVAr® Modular solutions, the measurement and control Main Module is installed by mounting it on the W-vending machine rail in the interior of the board. The main module is connected to the Graphic Display Module located on the cover with the help of 4 cables and parameter settings and monitoring are performed. With this method, cable savings of 50 dec 70 m can be achieved.

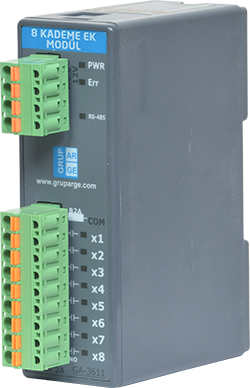

There are 12 stage outputs on the NetVAr Main Module. If desired, this number can be increased to 20 or 28 with the help of October Additional Echelon Module.
